PANOBINO with Photonis Echo Green Phosphor Tubes (assembled by Darq Industries)

-This is a no-compromises binocular with a USA-manufactured bridge and monocular housings and European intensifier tubes

-Full 7075-T6 hardcoat anodized aluminum construction for the most rugged and rigid setup possible

-Utilizes our patented adjustable field of view mechanism in order to deliver better situational awareness for faster and more accurate decision making

-Independent power sources for each monocular

-Independent manual gain for each monocular

-Independent infrared illuminators

-Low cost gen2+ intensifier tubes from Photonis that have excellent performance in mixed lighting conditions

-Genuine FUJINON milspec lenses installed for the highest quality optical experience

-Professionally assembled, dry nitrogen purged, and collimated on a Hoffman Engineering ANV-126VS test set by our friends at Darq Industries

-Backed by a 10-year monocular warranty and lifetime bridge warranty

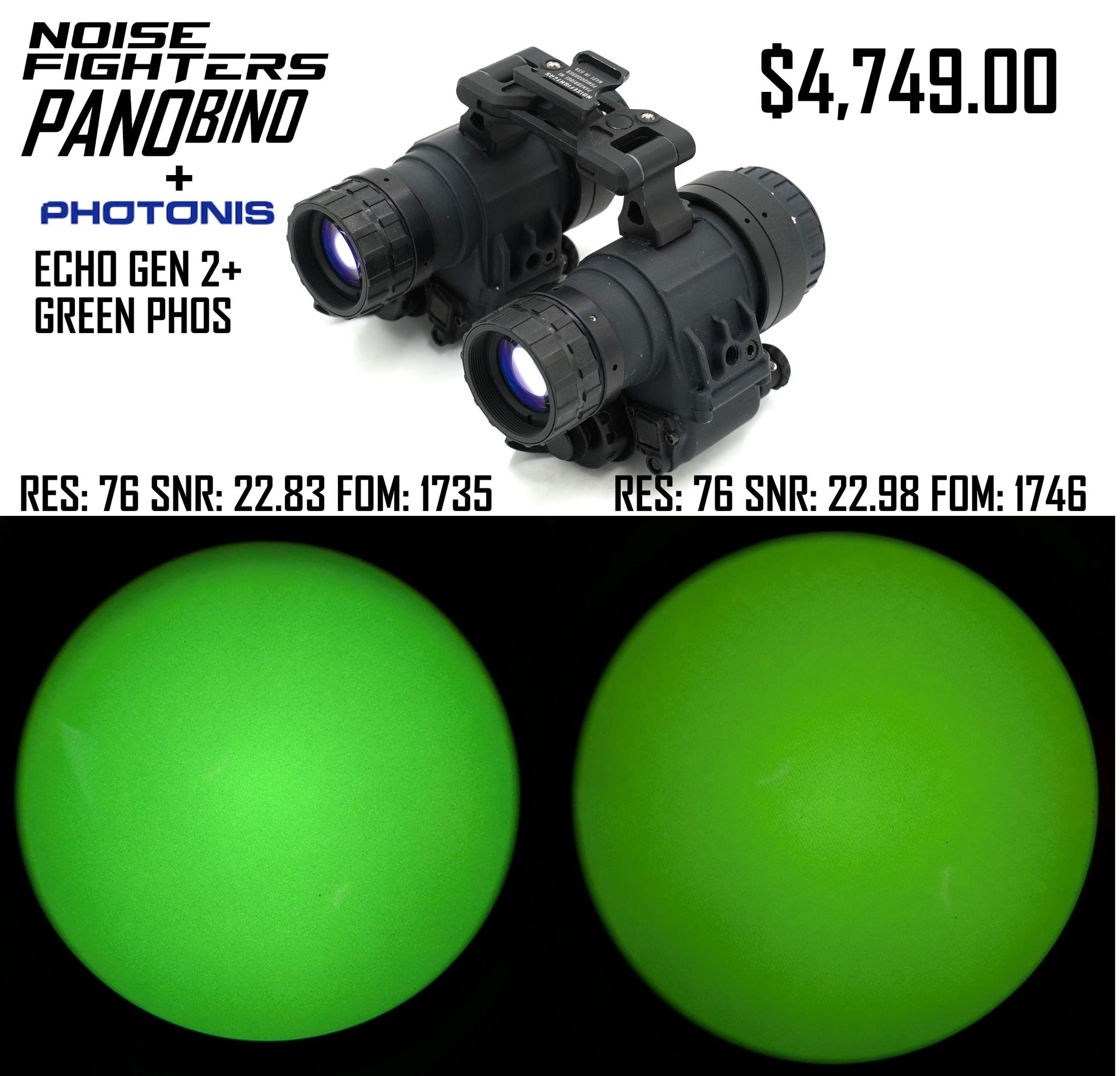

INTENSIFIER TUBE 1:
MANUFACTURER: PHOTONIS; TYPE: ECHO; COLOR: GREEN PHOSPHOR; FOM: 1735; RESOLUTION: 76; SNR: 22.83; GAIN: 41,294; SPOTS: ONE IN ZONE 2 SIZED 75-150um

TUBE 2:
MANUFACTURER: PHOTONIS; TYPE: ECHO; COLOR: GREEN PHOSPHOR; FOM: 1746; RESOLUTION: 76; SNR: 22.98; GAIN: 39,859; SPOTS: ONE IN ZONE 2 SIZED 75-150um

PANOBINO™ is the first official collaboration between AB Night Vision and Noisefighters and features an on-the-fly adjustable field of view dual tube night vision binocular, full articulation giving the ability to quickly move a single pod away from one's eye or tightly stow pods against the helmet, dual infrared illuminators, manual gain control, independent power sources for each monocular to provide a fallback in case of battery or electronics failure, and a completely 7075-T6 hardcoat anodized aluminum construction. PANOBINO offers a patented technology (U.S. patent 12,114,723) that displays an on-demand panoramic image ~50% wider than normal binoculars, and since the RVM-14s are removable, an adapter arm for thermal imagers may be swapped in to build a dual band night vision and heat sensing binocular.

This complete system with dual RVM-14s and milspec Fujinon lens installed weighs approximately 22oz / 625g.

PANOBINO offers on-the-fly pan angle adjustment with the ability to individually lock each side, extreme rigidity, and bulletproof durability. To adjust the pan angle, simply grab one arm and firmly rotate the friction-based mechanism. To mechanically lock an arm at the chosen pan angle, take a 3/32" hex wrench or the 3/32" bit from the included NVAT (Night Vision Accessory Tool) and tighten the top-mounted set screw.

Both monoculars attached to the Noisefighters PANOBINO may be individually swung upwards, out of the line of sight, without disturbing the adjacent device's positioning. For extended periods when one eye must view scenes unaided by night vision or be aided by a thermal vision system, this added articulation feature is crucial.

This feature also allows the monoculars to better hug the helmet when the entire assembly is folded back in the stowed position, leading to a more balanced center of gravity and a reduced possibility of impacting door frames or other objects above the head.

We offer separate a metal adapter to mount thermal monoculars that utilize the Mini-Rail / MUM attachment method, such as FLIR® Breach, Infiray® MH-25 / RH-25 (with mini-rail installed), Sionyx® OPSIN, or the MUM-14 night vision monocular. The adapter can be mounted to either side of the PANOBINO if one desires to remove either of the RVM-14 adapter arms. A slider is included to adjust the interpupillary distance.

For those using the high-performance Infiray® RH-25, N-Vision® NOX18, or similar thermal devices with male dovetail mounts installed, we also offer a separate quick-detach (QD) adapter for the fastest installation and removal. The adapter can be mounted to either side of the PANOBINO. A slider is included to adjust the interpupillary distance.

Considerations to account for:

1. No auto-shutoff system is integrated. Users must manually turn off the monoculars when flipping up and stowing equipment on the top of the helmet.
2. This bridge is NOT COMPATIBLE with bayonet-style night vision helmet mounts. You MUST HAVE a dovetail-type night vision helmet mount. The cheapest yet adequate option for a sturdy dovetail-compatible helmet mount is to purchase a military surplus Norotos® RHNO-II (bayonet) mount and modify it to accept the Norotos PVS-15/18 dovetail adapter. Instructions can be found on YouTube here. Our recommendation for a pre-assembled helmet mount with dovetail adapter is the Wilcox® G24 Lite or Nocturn Industries ALPHA mount.

---

Warranty information for the bridge:

A no-questions-asked, transferable lifetime warranty is included for the patented PANOBINO bridge. The bridge is proudly made and assembled in the U.S.A. and was designed by a Marine Corps combat veteran of Iraq and Afghanistan.

---

Warranty information for the night vision monoculars:

New night vision devices sold by DARQ Industries LLC (hereby referred to as either DARQ Industries LLC or DARQ Industries) carry a transferable ten year warranty on night vision monoculars.

This warranty covers the housing and image intensifier of the device against manufacturer and workmanship defects. This warranty does not cover normal wear and tear, damage, debris, damage or debris from modified or disassembled devices, devices with serial number or any part thereof altered, defaced, destroyed, or removed, or any condition or happenstance induced by an external variable. It is up to the sole discretion of DARQ Industries to determine and allow or deny any warranty concern or claim. In the event a concern is covered, we will either repair or replace the product or component with an equivalent, provided an equivalent replacement is attainable. If an equivalent replacement is not attainable we will make a substitution at our discretion and selection. We may also offer alternative options of equal, lesser, or greater value. If a lesser value option is selected we will offer a refund amount determined to be suitable to the cost difference at our discretion. If a greater value option is selected we will generate an invoice for the greater value amount. This shall be the full extent of coverage, no compensation may be sought in place. There may be varying timeframes in repairing or replacing a product or component. A timeframe estimate will be provided if your warranty claim is authorized. Bear in mind, this is an estimate and may vary in being either shorter than the projected timeframe or longer depending on various factors. Devices bearing our previous name are covered within the same scope of this policy.

This warranty does not apply or cover devices, parts, components, labor, shipping, or any effect of these if any of the following are determined:

• Misuse, negligence, abuse
• Products used in an inappropriate manner
• Products altered, modified, or repaired by anyone other than DARQ Industries without prior written consent of DARQ Industries
• Products altered, modified, or repaired by anyone other than DARQ Industries found to be damaged
• Labor resulting from alterations, modifications, or repair attempts from anyone other than DARQ Industries
• Light exposure, laser exposure, over exposure, light damage
• Impact damage
• Use of improper battery, or rechargeable with improper voltage, or otherwise not acceptable
• Other external variables or happenstances not described
• Discontinuance by the manufacturer
• Products specifically requested and special ordered for a customer which are not regular inventory
• Products provided by the customer which are not purchased from DARQ Industries
• Quality, condition, function, and other effects of products provided by the customer which are not purchased from DARQ Industries
• Devices transferred to a new owner without having a warranty transfer inspection completed

No other warranties will be applied other than this warranty.

Warranty claims falling outside of the scope of these written warranty terms may incur repair, parts, labor, and shipping fees charged to the customer

Pre-owned, trade-in, limited run, and other products may be subject to their stated warranty terms as noted in their descriptions and are not subject to the 10 and 5 year warranties. If no warranty is stated for a pre-owned, trade-in, limited run, or other non standard device then no warranty applies.

Warranty Request

To request a warranty claim please email info@DARQIndustries.com with the following information:

• Reason for request with description of condition and concern
• Order number
• Date of purchase
• Device Serial Number
• Image intensifier serial number(s)

The user is responsible for sending their product to DARQ Industries and assumes all liabilities in product safety and transit. The customer is responsible for return shipping charges unless otherwise stated.

---

PANOBINO SPECIFICATIONS:

INCLUDED IN BOX: PANOBINO WITH COLLIMATED RVM-14 MONOCULARS, RVM-14 MICRO DOVETAIL INSTALLATION WRENCH, NIGHT VISION ACCESSORY TOOL, LENS CAPS, DATA SHEETS, SOFT BAG

HELMET MOUNTING COMPATIBILITY: DOVETAIL

INTERPUPILLARY DISTANCE (IPD) COMPATIBILITY: 55 - 75mm

MATERIALS USED: 7075-T6 HARDCOAT ANODIZED ALUMINUM ALLOY; STAINLESS STEEL

WEIGHT (NO BATTERIES, NO EYECUP RETAINING RINGS, NO RUBBER EYECUPS, NO DEMIST SHIELDS INSTALLED): 22 OZ

WARRANTY: LIFETIME, TRANSFERABLE

NIGHT VISION / THERMAL DEVICES SHOWN IN PICTURES ARE NOT INCLUDED

THIS PRODUCT IS COVERED BY US PATENT 12,114,723

MADE AND ASSEMBLED IN THE U.S.A. BY A DISABLED U.S.M.C. COMBAT VETERAN OWNED COMPANY

DISCLAIMERS:

• ONLY AVAILABLE TO U.S. CITIZENS
• We ONLY ship within the United States
• Customer must sign ITAR acknowledgment form (we will email the form to you) before we can ship
• Billing and shipping address must match or your order may be cancelled if we cannot get in touch with you
