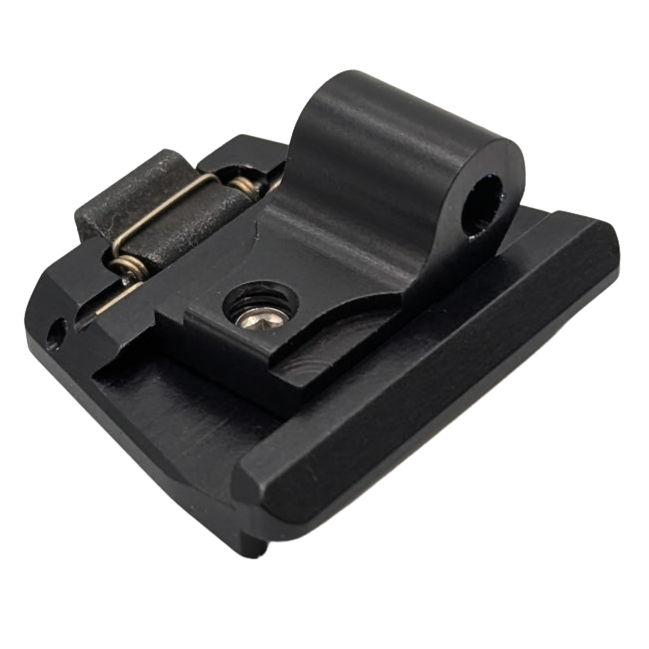

This product is a quick detach (QD) female dovetail adapter for our metal Panobridge series which allows for fast attachment and removal of imaging devices by utilizing a lever-actuated locking mechanism.

This product is made to align an AN/PVS-14 eyepiece with the Infiray® RH25 using the pictail adapter, and it can still provide an excellent experience with AGM StingIR and N-Vision NOX18 if those devices have our fore/aft adjustable male dovetail installed.

This product is not side specific.

Interpupillary distance is infinitely adjustable by loosening a screw, sliding the QD Adapter on the IPD Slider, and retightening.

Our design allows complete arm rotation (depending on the helmet mount; optimal results with Wilcox G24) in order to stow your device more compactly against the helmet.

Latest product update 12/2025: Mod 1 version is a smaller, lighter, and more rigid design; latch design changed to prevent inadvertent actuation; latch material upgraded to stainless steel; custom torsion spring added to provide extra force on latch to prevent inadvertent actuation; aluminum shim added to underside of dovetail which can be removed to allow out-of-spec male dovetails to be installed; IPD slider shortened and lightened and 10-32 screw is now captivated so that it cannot be removed accidentally

SPECIFICATIONS:

MATERIALS USED: 7075-T6 HARDCOAT ANODIZED ALUMINUM, STAINLESS STEEL

COMPATIBLE WITH: INFIRAY® RH25 (WITH AC52 PICTAIL OR OUR FORE-AFT ADJUSTABLE DOVETAIL ADAPTER INSTALLED), N-VISION OPTICS® NOX18, AGM® STINGIR (WITH OUR FORE-AFT ADJUSTABLE DOVETAIL INSTALLED), TRIJICON SKEETIR (IF BRIDGED WITH ANOTHER MONOCULAR, THAT OTHER DEVICE MUST HAVE OUR FORE/AFT ADJUSTABLE DOVETAIL ADAPTER OR OUR QUICK DETACH DOVETAIL ARMS FOR PVS-14 INSTALLED)

WEIGHT: 0.5 OZ

WARRANTY: LIFETIME, TRANSFERABLE

NIGHT VISION AND THERMAL DEVICES SHOWN IN PICTURES ARE NOT INCLUDED

MADE AND ASSEMBLED IN THE U.S.A. BY A DISABLED U.S.M.C. COMBAT VETERAN OWNED COMPANY

THIS ITEM IS SUBJECT TO EXPORT ADMINISTRATION REGULATIONS (E.A.R.) AND MAY BE EXPORTED ONLY TO CERTAIN COUNTRIES AND CUSTOMERS.
