DMAX14 | 1.4 oz All-Metal Night Vision / Thermal J-Arm with Rotating Knuckle (DOVETAIL style)

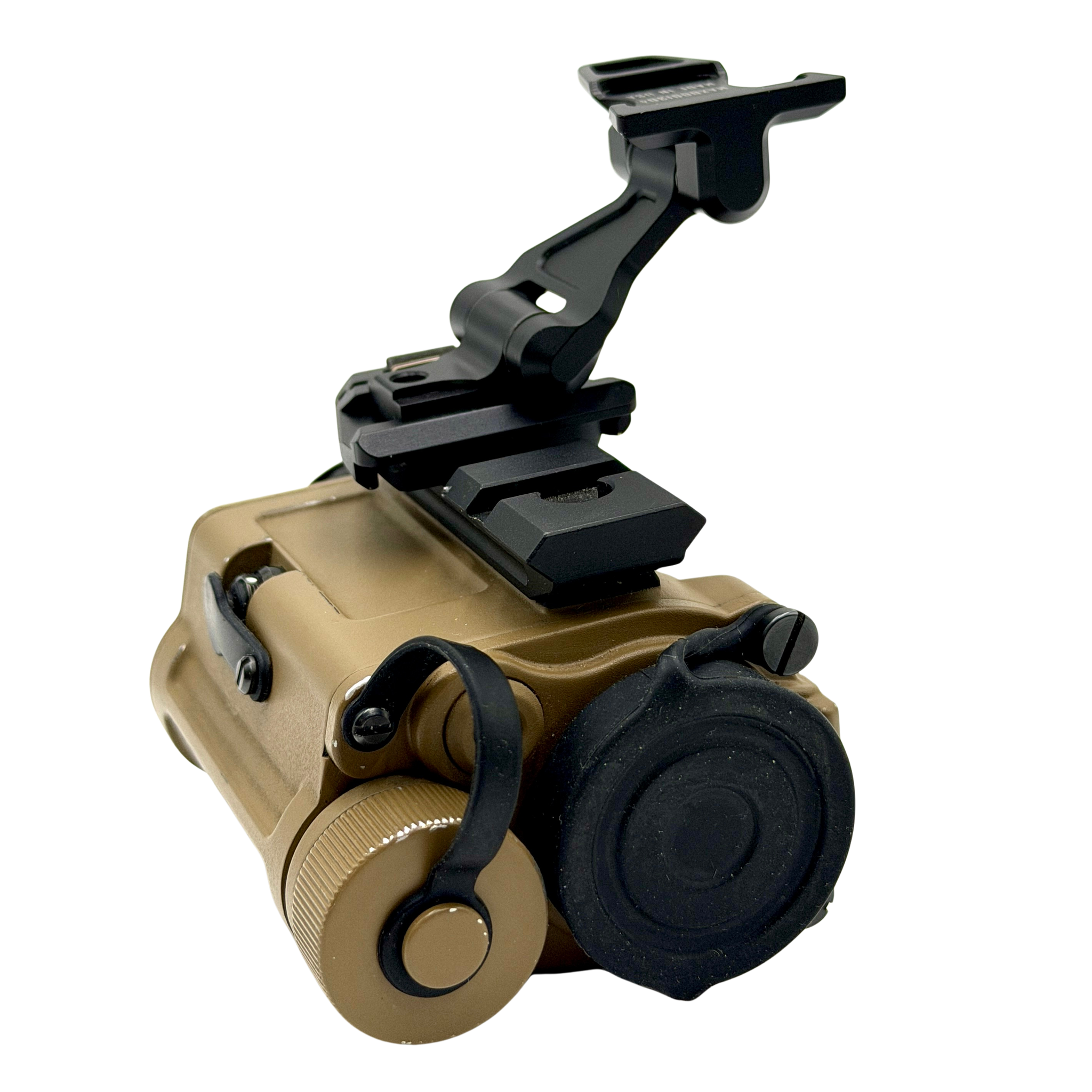

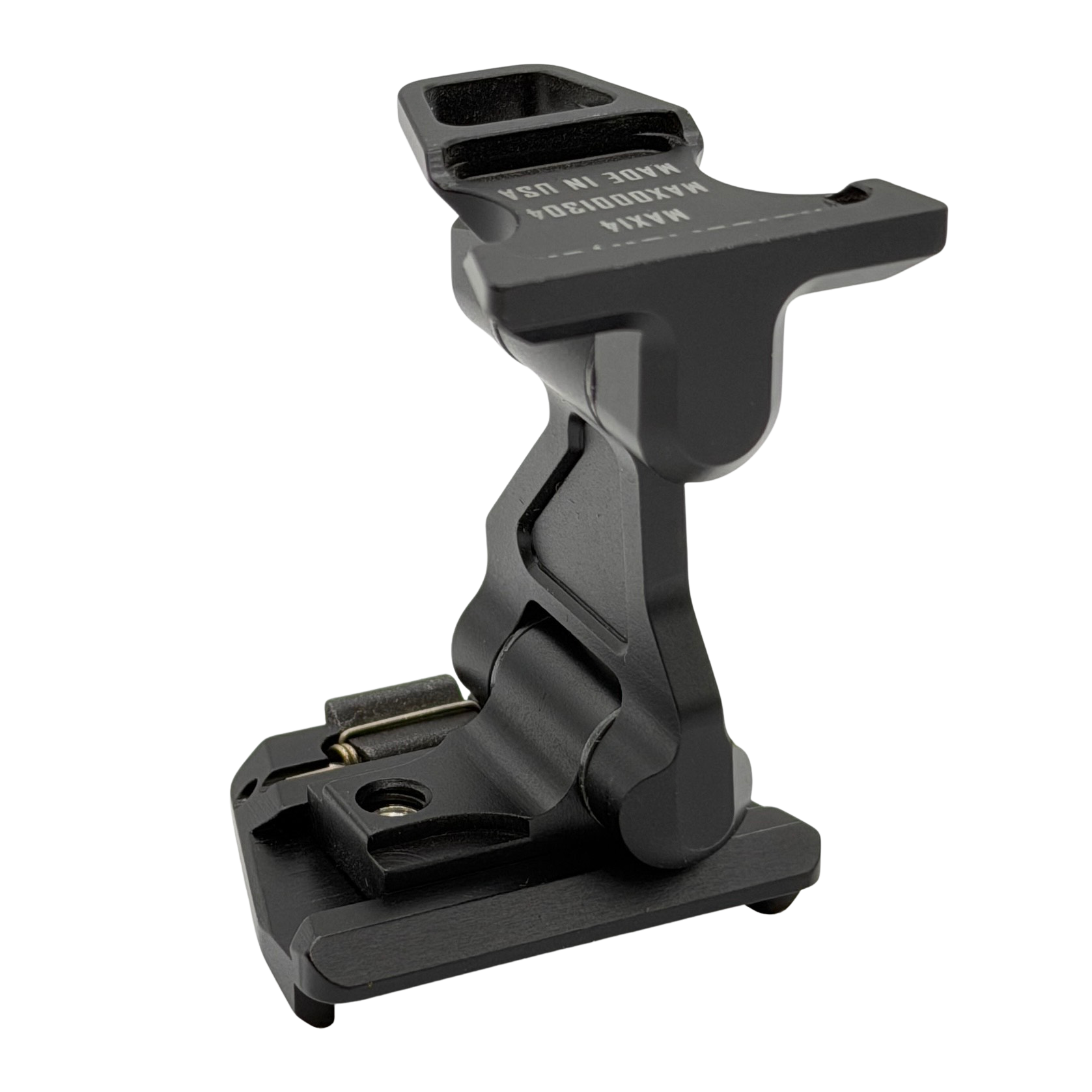

DMAX14™ is a rigid, incredibly lightweight, and all-metal night vision J-arm for dovetail-equipped thermal monoculars such as the Infiray RH25 and Trijicon SkeetIR. It includes a rotating knuckle which provides a tight stow against the helmet and also allows the monocular to be temporarily swung away from the eye. At 1.4 oz total, it weighs less than a polymer milspec J-Arm, yet its structure is composed entirely of the highest-performing 7075-T6 aluminum alloy for industry-leading durability.

An intuitive, friction-based mechanism allows users to swing their monocular in front of either the left or right eye and perfectly adjust for interpupillary distance, while a slight rearward sweep of the inner arm helps position the monocular eyepiece closer to one's eye and provides greater compatibility for those with larger helmets. A tether point is also featured on the rear to keep the entire system secure. Attach a monocular, snap the complete assembly into a dovetail-style helmet mount like the Wilcox® G24, and enjoy. Introducing the new industry standard in night vision monocular mounting.

US-made protective vinyl camouflage wraps, made by NOCORIUM, are available for purchase as an accessory. You can buy the wraps separately right here. Be aware that the wrap was designed for the MAX14 (designed for the PVS-14 monocular), and some of the included vinyl pieces cannot be installed on DMAX14.

A no-questions-asked, transferable lifetime warranty is included. The Noisefighters DMAX14 is proudly made and assembled in the U.S.A. and was designed by a Marine Corps combat veteran of Iraq and Afghanistan.

Considerations to account for when using this product:

This arm is NOT COMPATIBLE with bayonet-style night vision helmet mounts. You MUST HAVE a dovetail-type night vision helmet mount.

No auto-shutoff system is integrated. Users must manually turn off the monocular when articulating or flipping up and stowing equipment on top of the helmet.

SPECIFICATIONS:

COMPATIBLE WITH: ALL KNOWN THERMAL MONOCULARS USING THE DOVETAIL INTERFACE

HELMET MOUNTING COMPATIBILITY: DOVETAIL

INTERPUPILLARY DISTANCE (IPD) COMPATIBILITY: 55 - 75mm

TOTAL ASSEMBLED WEIGHT OF THIS PRODUCT: 1.4 OZ

DIMENSIONS: 3.5 x 1 x 1.25"

COMES WITH: ARM, 3/32" BIT

WARRANTY: LIFETIME, TRANSFERABLE

NIGHT VISION / THERMAL DEVICES SHOWN IN PICTURES ARE NOT INCLUDED

MADE AND ASSEMBLED IN THE U.S.A. BY A DISABLED U.S.M.C. COMBAT VETERAN OWNED COMPANY

THIS ITEM IS SUBJECT TO EXPORT ADMINISTRATION REGULATIONS (EAR)
